Post Bevel - 3k

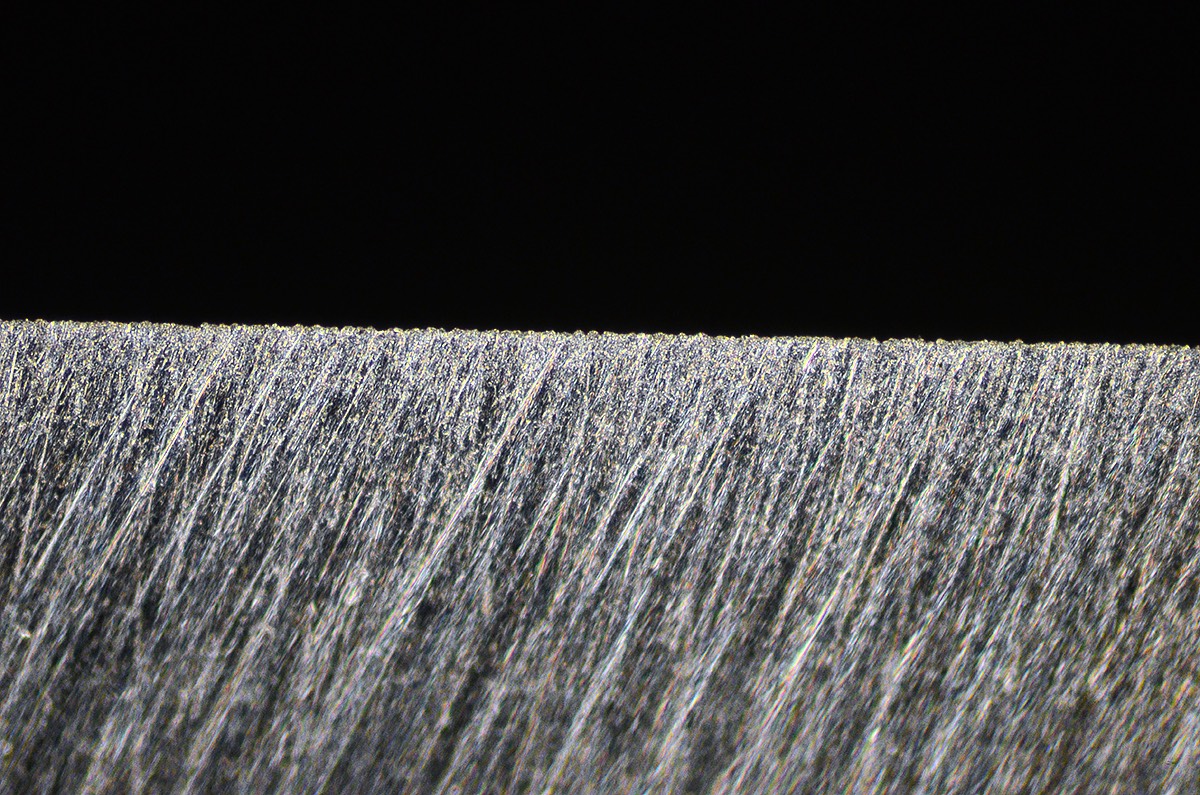

Greens Wedge 10x Neo DF 3kC

Bevel was first set on a 1k C and then refined a bit on a 3k Chosera. This image shows the bevel and edge at about the mid-way stage of the 3k honing effort. You can see the cutting edge has refined, but the face of the bevel shows that there is more work to be done.

Objective: Neo Splan 10x

Relay lens: 2.5x

Illumination: Reflected Darkfield

Total Magnification: Approx. 400x if viewed on a 19” monitor.
